Air Handling & Filtration
FG-AIR-LAFC
Laminar Flow Trolley
A mobile Grade A laminar flow cart providing a portable ISO 5 clean zone for the open transfer of sterile materials between cleanroom areas.
Request a Quote All Products
Overview

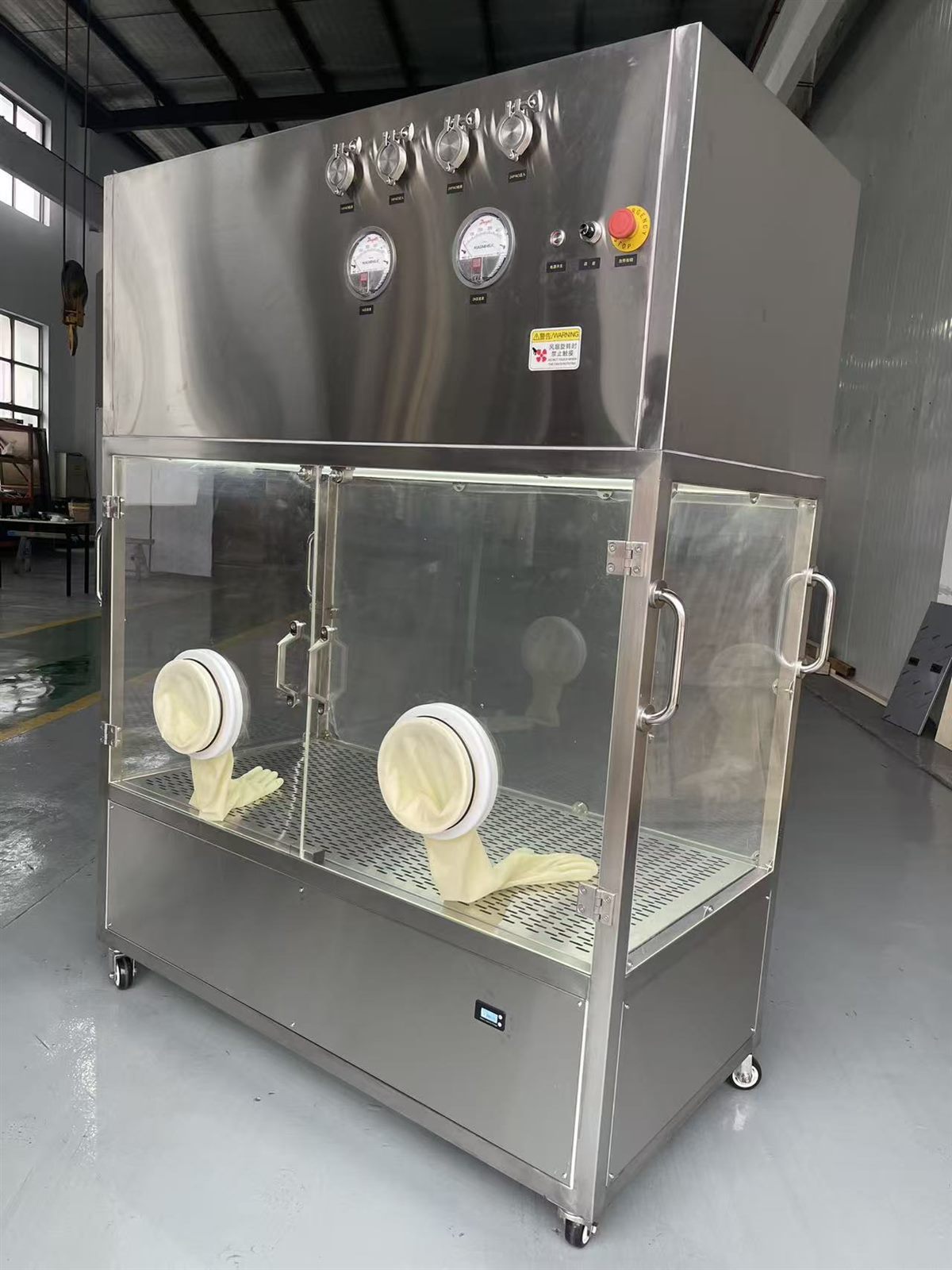

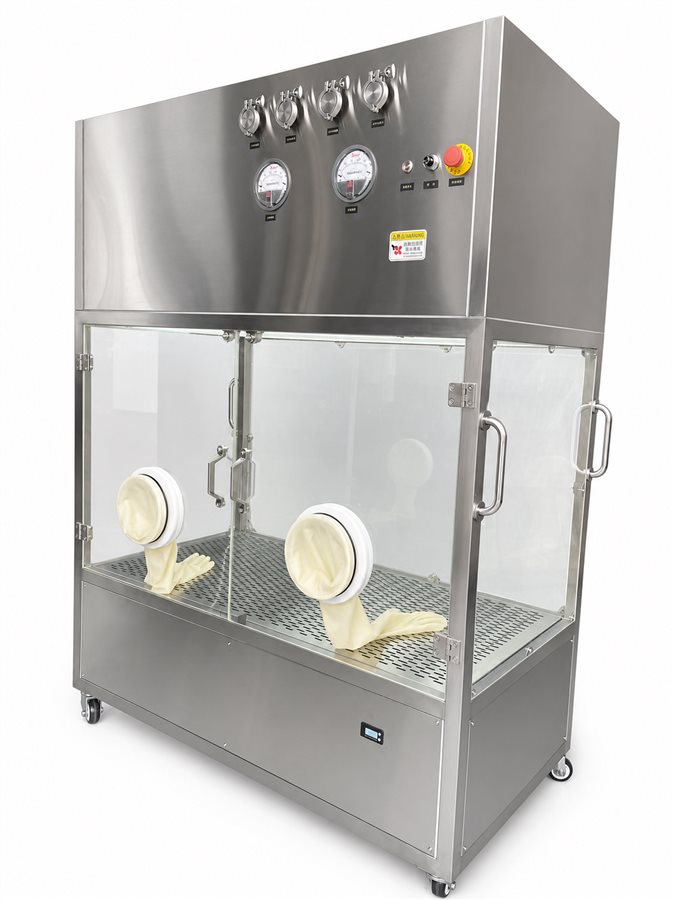

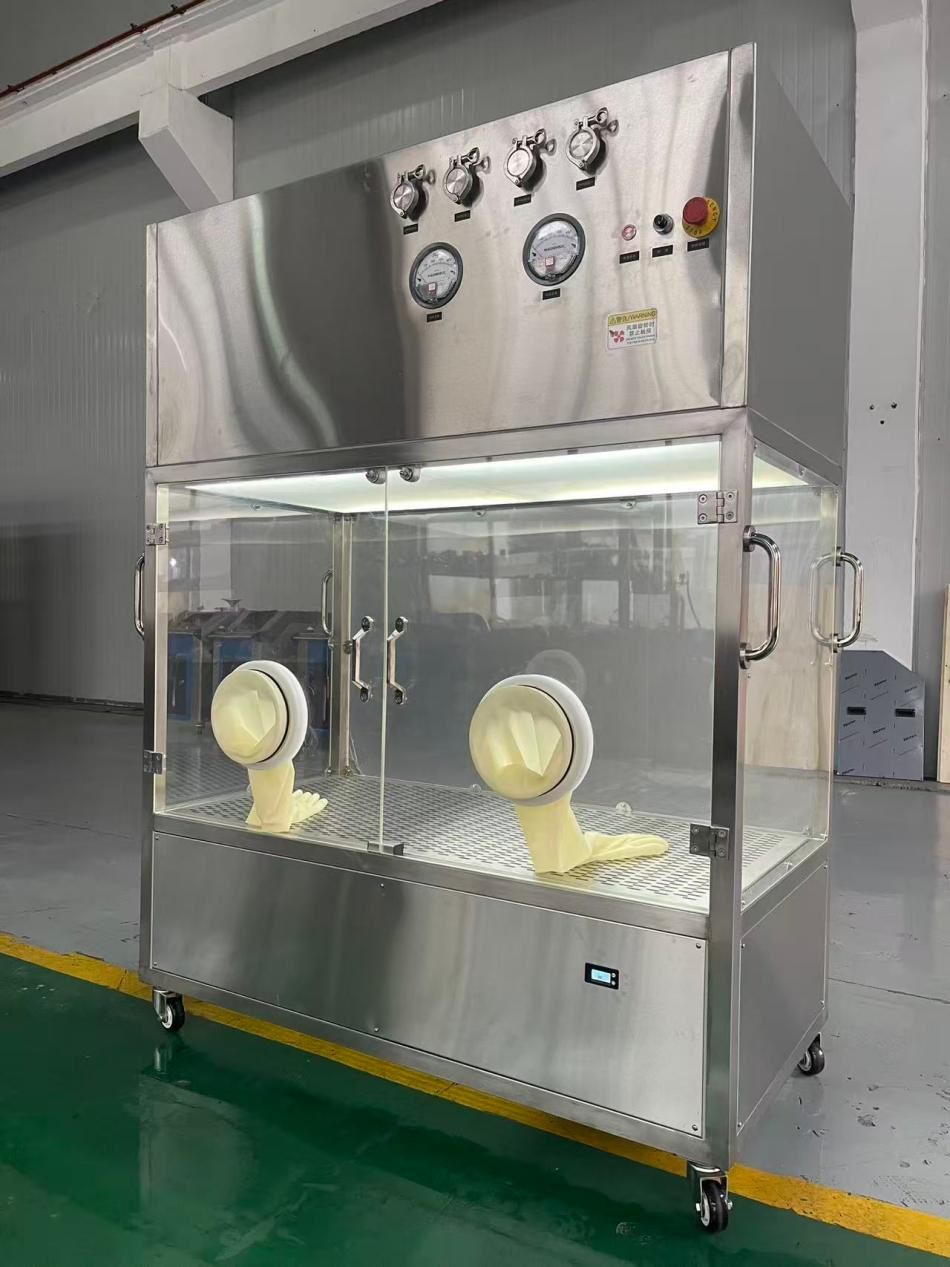

The Fenggu Laminar Flow Trolley is a self-contained mobile unit supplying HEPA-filtered vertical unidirectional airflow over its working surface. It creates a portable Grade A / ISO 5 environment that protects open or partially closed sterile materials while they are moved between cleanroom zones, filling lines or isolators. The stainless-steel trolley runs on lockable castors and can be battery-powered or mains-connected for continuous protection during transfer.
Key Features
- Portable Grade A / ISO 5 clean zone on a mobile trolley
- Vertical HEPA-filtered unidirectional airflow over the work surface
- SUS304 stainless-steel frame with lockable, cleanroom-grade castors
- Adjustable airflow velocity with differential-pressure display
- Battery or mains power option for uninterrupted transfer
- Low-noise fan-filter unit suitable for occupied cleanrooms
Technical Parameters
| Airflow pattern | Vertical unidirectional | Cleanliness | ISO 5 / Grade A |
|---|---|---|---|
| Air velocity | 0.36–0.54 m/s, adjustable | Filtration | HEPA H14 terminal |
| Construction | SUS304 stainless steel | Mobility | 4 lockable castors |
| Power supply | AC 220 V, 50 Hz / optional battery | Noise | ≤ 65 dB |
Working-surface size, height and power option are configured to the intended transfer task and cleanroom layout.
Applications
Sterile Material Transfer
Open Product Movement Between Zones
Cleanroom-to-Cleanroom Transport
Grade A Protection During Transfer
Filling Line Feeding
Request a datasheet or quotation
Tell us the transfer task, working-surface requirement and room classification, and our engineers will recommend a suitable configuration.
Contact Our TeamFrequently Asked Questions
What is a laminar flow trolley used for?
A self-contained mobile unit supplying HEPA-filtered vertical unidirectional airflow over its working surface, creating a portable Grade A / ISO 5 zone that protects open or partially closed sterile materials while they are moved between cleanroom zones.
What are its specifications?
ISO 5 / Grade A, air velocity 0.36-0.54 m/s (adjustable), H14 HEPA terminal, SUS304 construction, 4 lockable castors, AC 220 V / 50 Hz (optional battery), noise 65 dB or less.
Can it run on battery?
Yes. A battery power option is available for movement without a trailing cable; working-surface size, height and power option are configured to the transfer task.
How does it differ from a fixed laminar flow hood?
The trolley is mobile (on castors, optional battery) to protect materials in transit, whereas a fixed hood protects a stationary work area.
