RTP — Rapid Transfer Port
A rapid transfer port system for moving high-risk sterile materials between controlled environments without breaking containment.
Request a Quote All Products
Overview

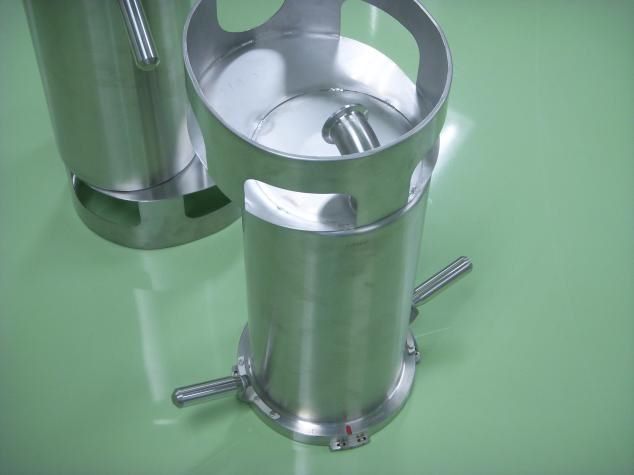

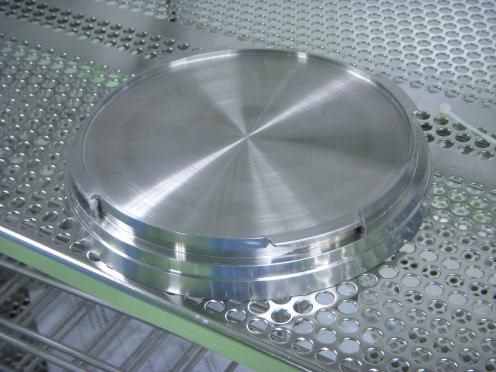

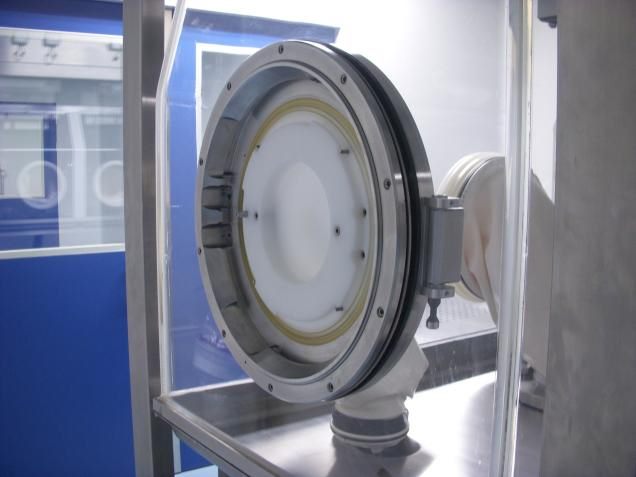

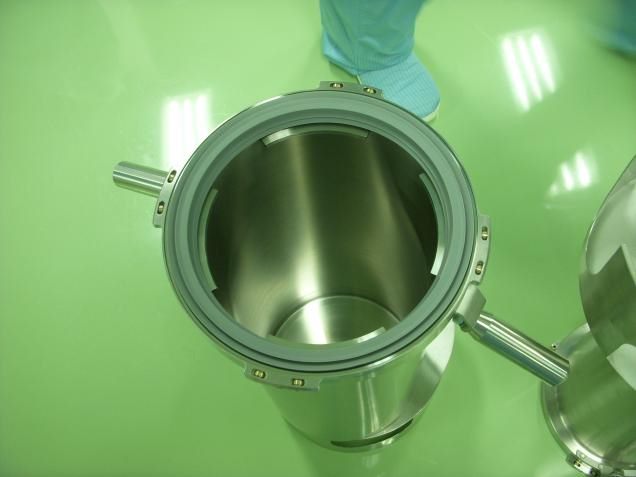

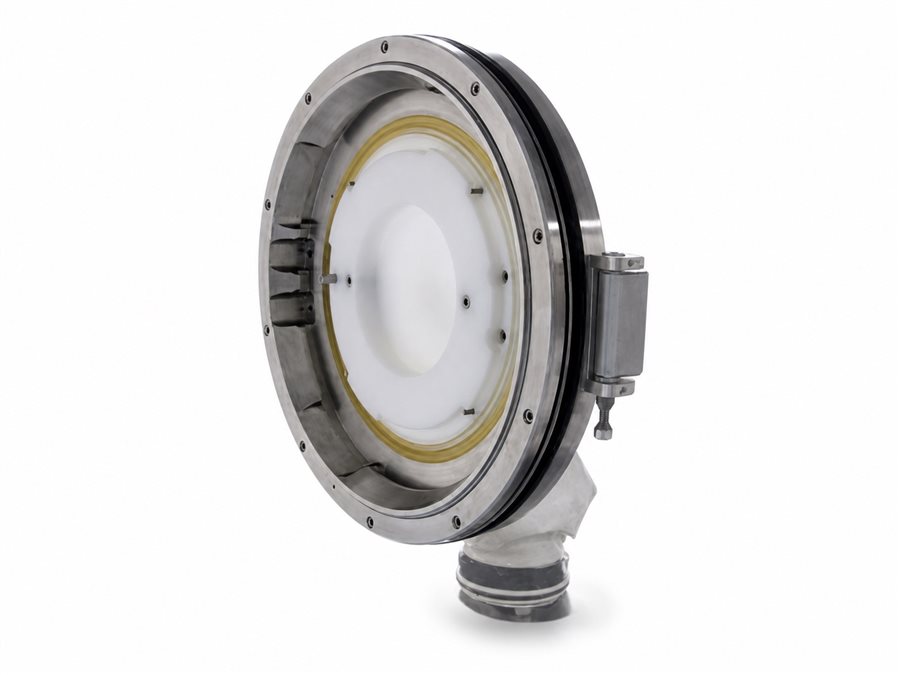

The Fenggu Rapid Transfer Port (RTP) is designed for sterile transfer of high-risk materials between two controlled environments. The system comprises a fixed RTP alpha port and a matching transfer container beta port, selected according to the size and shape of the transferred material.

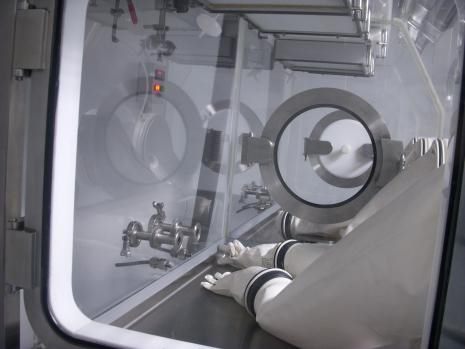

The transfer container can be loaded in a lower-grade area, closed with the operating tool, sterilized offline and then docked to the fixed port on a RABS or isolator. Interlocked docking and opening steps help maintain the sterile boundary throughout material transfer.
Key Features
- Fixed alpha port and matching transfer-container beta port
- 316L stainless-steel valve body
- Fluoroelastomer seal as standard; silicone options available
- Nominal port sizes of 105, 190, 270 and 350 mm
- Documented OEB4 sealing level
- Offline sterilization arrangement with sterilizing filter
- Optional container opening tool, mobile trolley and removable inner container
Technical Parameters
| System type | RTP alpha port and beta transfer container | Valve body material | 316L stainless steel |
|---|---|---|---|
| Standard seal | Fluoroelastomer | Optional seal | Silicone |
| Nominal sizes | 105, 190, 270 and 350 mm | Documented containment level | OEB4 |
| Container sterilization | Offline sterilization | Sterilization method | Pulsed-vacuum cycle specified in source document |
| Optional accessories | Opening tool, mobile trolley, inner container | Port selection | Based on transferred material dimensions |
Applications
Request a datasheet or quotation
Tell us the largest transferred item, sterilization method and required port size, and our engineers will recommend an RTP configuration.
