FG-AHP-F300

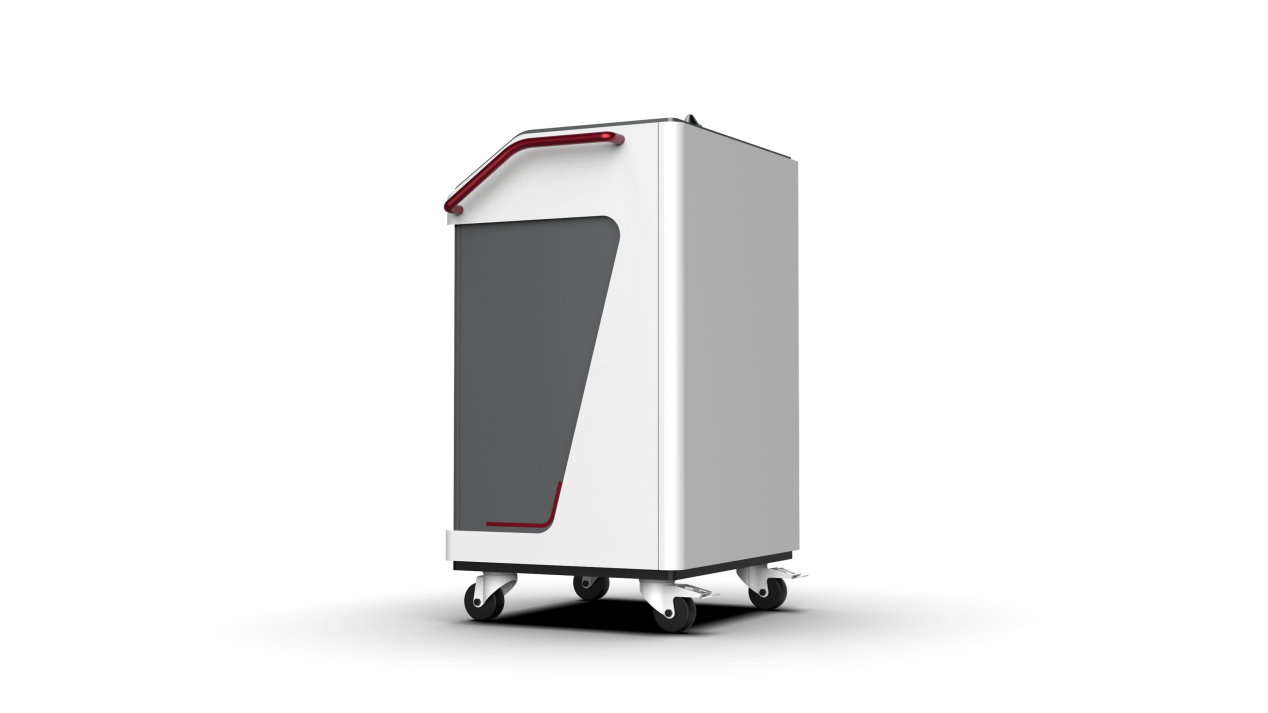

Aerosolized Hydrogen Peroxide (aHP) Fogging Machine
Uses high-pressure, high-velocity airflow to aerosolize disinfectant into an ultra-fine "dry fog," combining physical diffusion with chemical disinfecting action; multiple units can be networked and operated as a coordinated system for spaces up to 5,000 m³.
Request a Quote All Products
Overview
The core principle of the aHP fogging machine is to generate high-pressure, high-velocity airflow that creates negative pressure at the nozzle, drawing disinfectant solution out and shearing it into an ultra-fine mist ("dry fog"). These micro-droplets diffuse through the space by physical motion while their chemical properties act on microorganisms. Multiple units can be networked for a coordinated disinfection scheme, covering complex spaces up to 5,000 m³.
Key Features
- Controllable via the built-in HMI or a remote computer
- Cycle data can be exported via USB drive once complete
- Multiple units can operate together
- Automatically calculates total hydrogen peroxide consumption for the cycle
- Cycle recipes can be stored and executed using a single start command
- Optional solution weighing/metering module to control total dosage and support consistent dosing across cycles
- Configurable parameters including cycle time and spray rate
- Scheduling function to set custom operating times
- Three-level password access management and audit-trail function to support data integrity
- Designed for good compatibility with common cleanroom panel materials under controlled, non-condensing conditions
Technical Specifications
| External dimensions (W×D×H) | 640×836×1,036 mm | Exterior material | 304 stainless steel |
|---|---|---|---|
| Power / frequency / rating | 220 V AC / 50 Hz / ≤2 kW | Touchscreen / control system | Siemens HMI / Siemens PLC |
| Noise | ≤85 dB(A) | Solution flow rate | ≤32 mL/min |
| Treatment volume per unit | ≤300 m³ | Droplet size | 1–5 μm |
| Dehumidification target | <30% RH | Sterilant | Dedicated sporicidal solution |
| Sporicidal efficacy | ≥6-log reduction (subject to validation) | Net weight | Approx. 80 kg |
| Sporicidal solution capacity per unit | ≤5 L |
Applications
Request a datasheet or quotation
Tell us your treatment volume and process requirements, and our engineers will recommend the right configuration.
